- Descrizione del prodotto
-

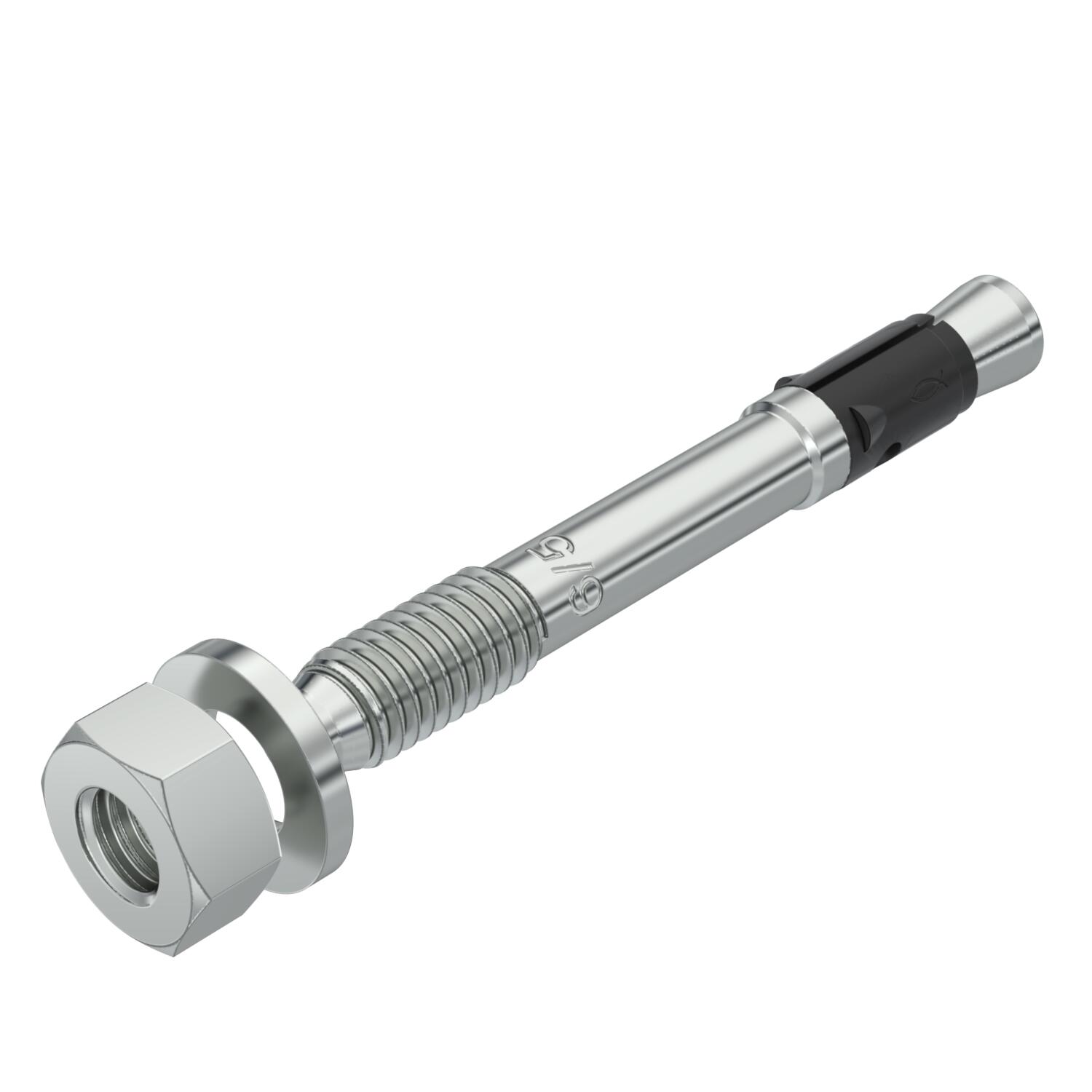

Descrizione del prodottoNail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
-
- Dati tecnici
-
Dati tecnici

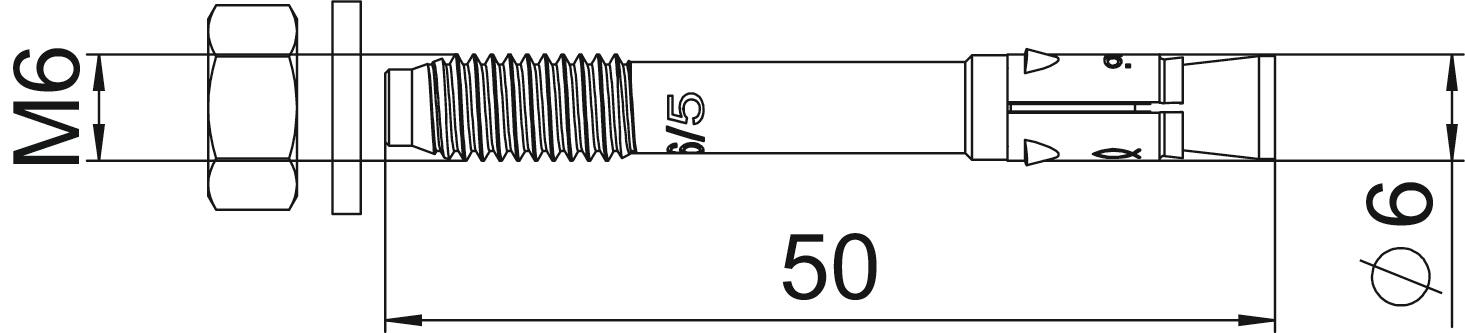

Autoperforante no Colore zinco Diametro della foratura min. 6 mm Dimensione L 55 mm Dimensionee 6x50 Dispositivo di fissaggio altro Filettatura M6 Filettatura metrica 6 Lughezza. 55 mm Materiale Acciaio Omologazioni presenti sì Profondità foratura 45 mm Spessore morsetto 10 mm Superficie zincato galvanicamente Versione Impatto - Tutti i tipi
- Download
-
Scheda tecnica FNAII 6x30M6/5 / 3499020 , 0.16MB , pdfDichiarazione di conformità UE FNAII 6x30M6/5 / 3499020 , 0.11MB , pdfPer questo prodotto non sono disponibili caratteristiche tecniche
