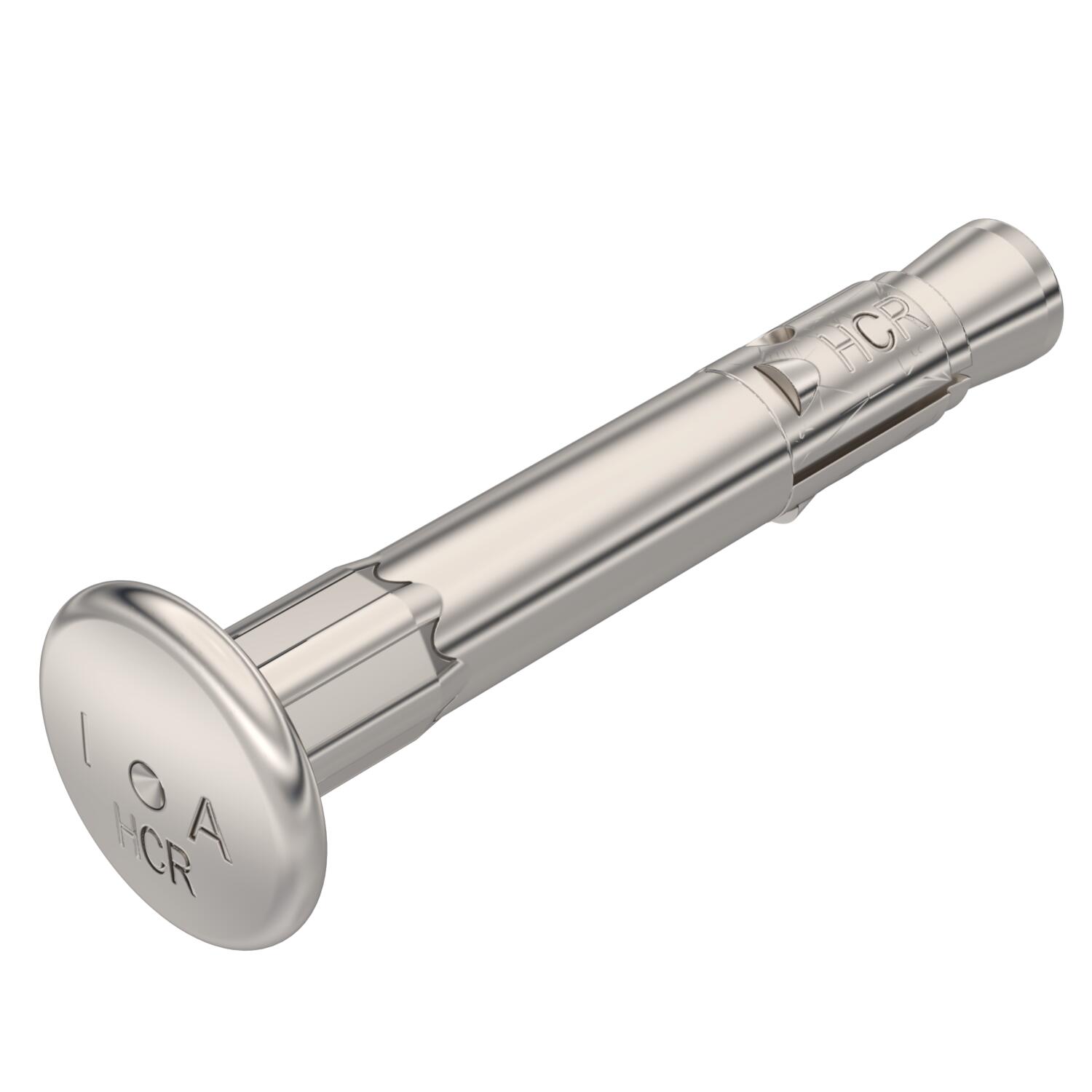

Nail tie with nail head A5

N. art. 3499016 | EAN 4012197507350

Descrizione del prodotto
Descrizione del prodotto
Nail tie with nail head for the anchoring of, for example, fire protection products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer or rotary drill When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Comunità europee, Dichiarazione di conformità CE secondo le linee guida CE
Dati tecnici

Dati tecnici

Autoperforante no
Colore acciaio inox
Diametro della foratura min. 6 mm
Dimensione L 42,5 mm
Dimensionee 6x42,5
Dispositivo di fissaggio altro
Lughezza. 42,5 mm
Materiale Acciaio, inox
Omologazioni presenti
Profondità foratura 45 mm
Spessore morsetto 5 mm
Versione Impatto
Tutti i tipi

Tutti i tipi

Tipo Filettatura N. art. Quantità Conf. Prezzo di listino IVA escl.
FNAII 6x30/5 3499010
100 pz 199,00 CHF Prezzo / 100 pz
FNAII 6x30/5A5 3499016
50 pz 2.500,00 CHF Prezzo / 100 pz
Download

Dichiarazione di conformità UE FNAII 6x30/5A5 / 3499016 , 0.11MB , pdf
