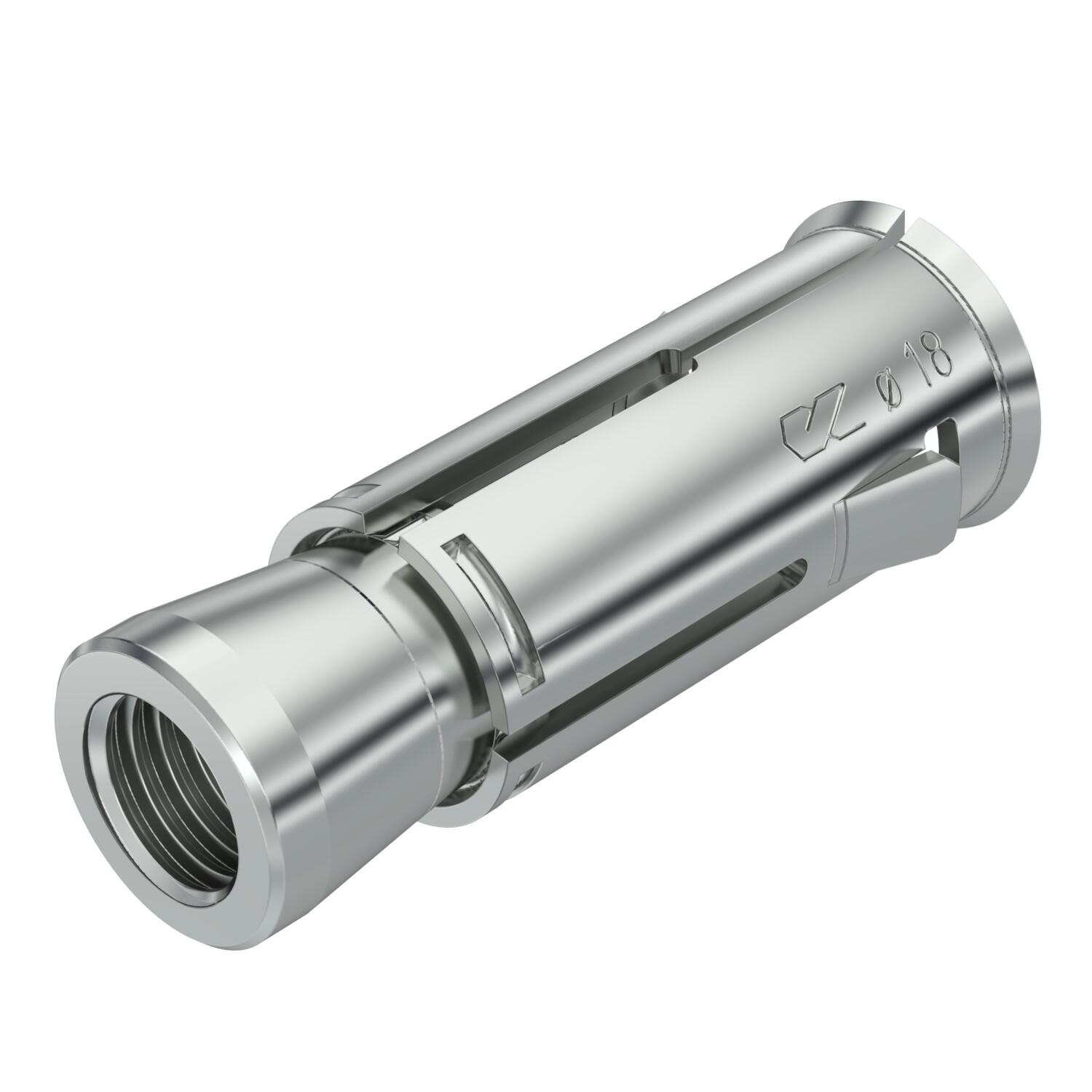

Hollow core anchor G

N. art. 3499046 | EAN 4012197504601

Descrizione del prodotto
Descrizione del prodotto
Hollow core anchor with internal thread for anchoring, for example, cable tray constructions, pipes, suspended ceilings, wooden constructions, etc. on walls and ceilings made from stressed concrete hollow-core slabs in indoor and outdoor areas. With an edge to prevent the anchor from being pulled in. When the fastening screw is screwed in the expansion sleeve is spread open through the cone and tightens against the drill hole walls. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-21/0857.
  • Comunità europee, Dichiarazione di conformità CE secondo le linee guida CE
Dati tecnici

Dati tecnici

Colore zinco
Con filettatura
Con viti no
Diametro della foratura min. 18 mm

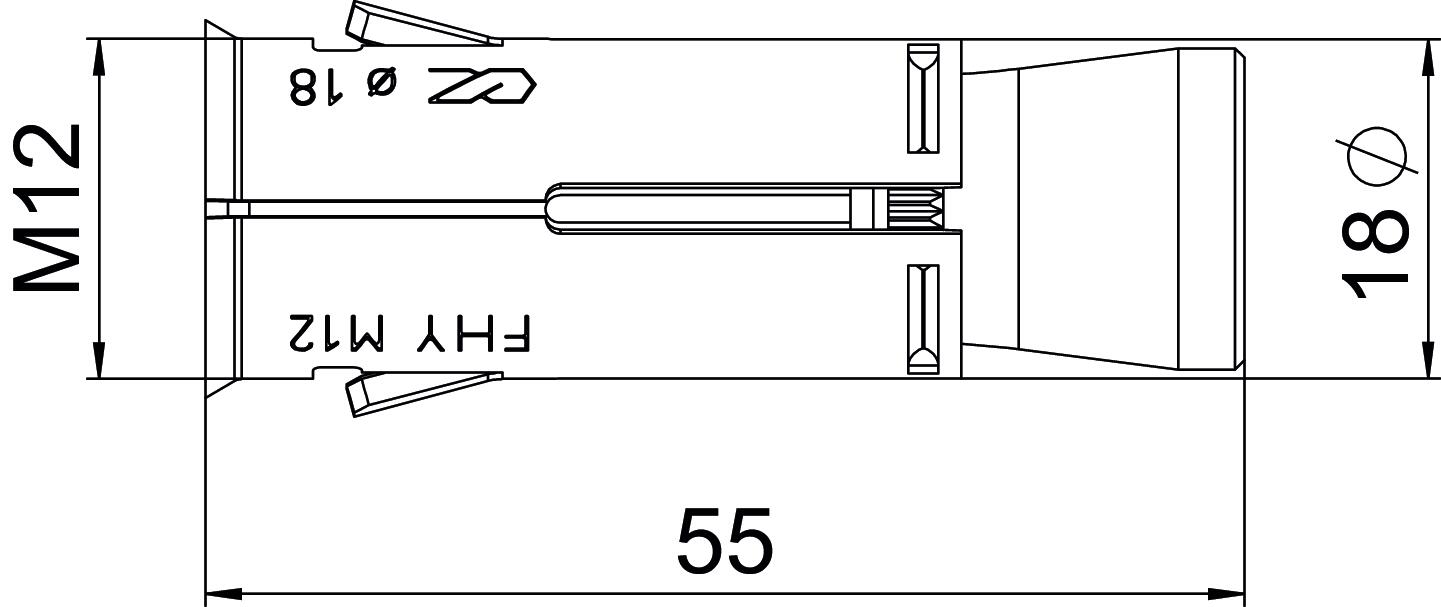

Dimensionee 18x55
Filettatura M12
Filettatura metrica 12
Materiale Acciaio
Profondità foratura 70 mm
Superficie zincato galvanicamente
Tipo filettatura metrica
Tutti i tipi

Tutti i tipi

Tipo Diametro della foratura min. Filettatura N. art. Quantità Conf. Prezzo di listino IVA escl.
FHY M6 10 mm M6 3499040
50 pz 845,00 CHF Prezzo / 100 pz
FHY M8 12 mm M8 3499042
25 pz 1.135,00 CHF Prezzo / 100 pz
FHY M10 16 mm M10 3499044
25 pz 1.510,00 CHF Prezzo / 100 pz
FHY M12 18 mm M12 3499046
25 pz 1.900,00 CHF Prezzo / 100 pz
Download

Download

Dichiarazione di conformità UE FHY M12 / 3499046 , 0.11MB , pdf
Download

Per questo prodotto non sono disponibili caratteristiche tecniche
